"Standard" Pneumo Depth Gauge - Breathing Air (Diameters 150mm to 300mm)

The Ashford Instrumentation Ltd Standard ABS Plastic Case or Black Painted Steel Pneumo Gauge is a precision pressure gauge used for diver depth monitoring or for measuring the pressure within a hyperbaric chamber offering the ability to zero the pointer via an adjustment screw located on the front of the gauge.

Available in 150mm, 200mm, 250mm, 300mm and 8.5" diameters with a black ABS plastic case as standard in diameters 6" and 8.5" and black painted steel cases in diameters 200mm and 300mm. The Standard Pneumo Gauge is fully degreased and is designed for commercial diving applications where breathing air or oxygen enriched air is being used. With an accuracy of 0.25% full scale, an easy to read mirror band dial and knife edge pointer the Standard Pneumo Gauge is built to the highest quality and safety standards.

The Standard Pneumo Gauge is also fitted with a Transit Screw located on the back of the case. The screw turned turned through 45 degrees to lock/unlock, operates a  mechanical lock which holds the bourdon tube in position preventing unwanted movement/damage during transportation.

The Standard Pneumo Gauge is fully degreased and the dial is marked with the crossed oil can symbol in red and the wording USE NO OIL. The European Standard EN837-1 can be included on the dial where required and as sea water scales do not have an Internationally recognized value, all of our instruments are manufactured with a sea water specific gravity value of 1.025 which is marked on the dial face to ease calibration in the field.

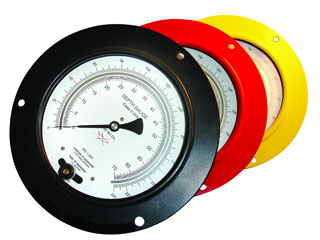

As standard this instrument is supplied as 3-hole front flange with lower back entry although panel mount clamp fixing and surface mount with 3-hole back flange mount is also available. The 3-hole front flange panel mounting bezels can be manufactured in a range of vibrant colours for easy identification including red, green, blue and yellow.

Customer logos or names can be factory printed on the dial face allowing this product to be easily branded for OEM applications.

NOTE: Please note that this design of pneumo gauge should not be used on applications where the word OXYGEN needs to be printed on the dial. In this instance please see our premium range of pneumo gauges by following this link.
